E9

StarLine E9 series classic security telematic system

Integrated 2CAN+2LIN interface
 Bluetooth Smart and Super Slave mode allow use of factory remote and safe authorization with StarLine tag, remote, smartphone or PIN code
 Shockproof housing 2-way remote efficiently operates in city radio interference and on extra long distance
 Intelligent remote start and parking heater control bring comfortable climate into a car in any weather
Find list of CAN interface supported car models and functions at can.starline.ru

Welcome free and intuitive monitoring web site starline.online

Download free StarLine Mobile application for iOS, Android and Windows Phone

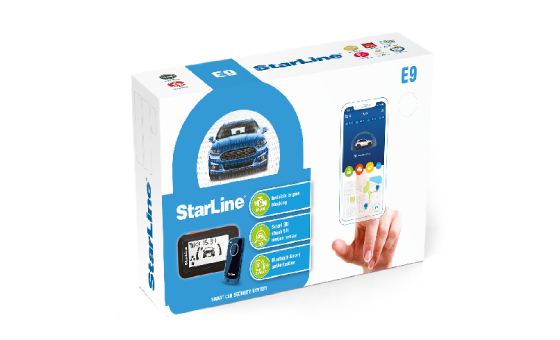

Delivery sets and options E9 Mini E9 Eco E9 Pro

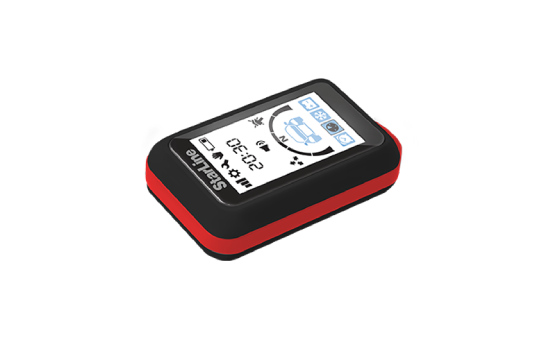

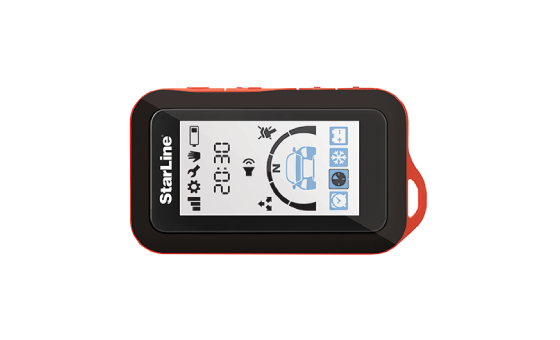

2-way LCD remote RF 868 MHz optional 1 1
1-way remote RF 868 MHz optional optional optional
Wireless Bluetooth tags 0/1/2 optional 1
2CAN+2LIN interface + + +
GSM control optional
with M66
optional
with M66
optional
with M66
GPS+GLONASS navigation optional
with M66
optional
with M66
optional
with M66
Integrated motion / shock / tilt sensor + + +
Integrated cabin temperature sensor + + +
External engine temperature sensor optional optional +
Siren + + +

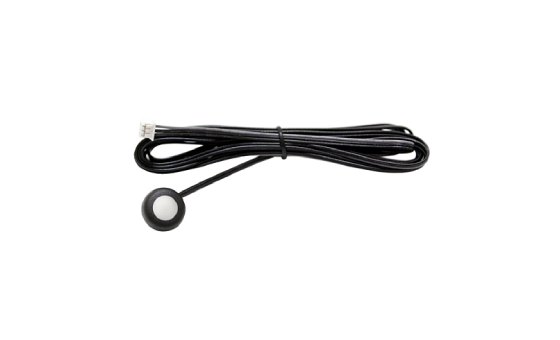

Service button with LED indicator + + +
USB cable + + +
Blade fuse with holder 3A 3A 3A
Standard 5-contact car relay with connector + + +

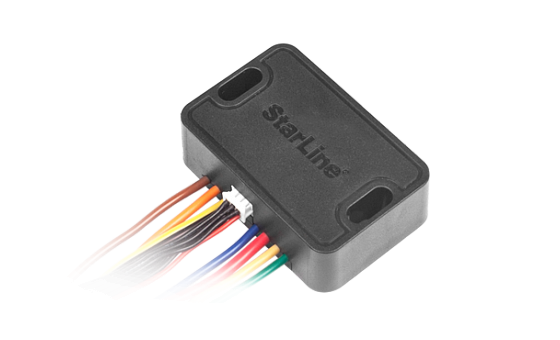

External engine start control module optional optional +
External engine blocking and service module optional optional optional

SMART SECURITY

SMART DIALOG

Smart dialog control code with individual encryption keys guarantees reliable protection against all known code grabbers

RADIO NOISE IMMUNITY

StarLine system efficiently operates in city extreme radio interference due to unique narrow-band 868 MHz transceiver with low-noise amplifier

BLUETOOTH SMART AUTHORIZATION

To start driving owner should pass authorization by a small waterproof wireless tag or smartphone with Bluetooth 4.2 version and above

SMART 3D SENSOR

Integrated 3D accelerometer registers shocks, motion, jacking-up, towing a vehicle and evaluates driving style

SUPER SLAVE

Control over car security with factory remote and reliable additional authorization with StarLine remote

PIN-TO-DRIVE

Additional authorization provides reliable protection against hijacking, enhancing security functions of factory car alarm. Trip is allowed only after entering an individual PIN-code with car original buttons

INVISIBLE ENGINE BLOCKING

Unique patented iCAN technology guarantees reliable protection by hidden engine blocking through a factory digital CAN or LIN bus

ADDITIONAL ENGINE BLOCKING (option)

Optional wireless R6 or digital R4 relay module provides additional safe engine blocking and allows protection of engine compartment with use of optional StarLine L11+, StarLine L10 hood locks

ANTI-HIJACK

StarLine protects against theft and hijacking with safe engine blocking in motion if tag is not detected or with owner’s command by GSM interface

SECURE KEYLESS-GO

Intelligent protection against relay attack with blocking the factory Keyless-Go system when wireless tag or registered smartphone is away

RECORD ENERGY EFFICIENCY

StarLine guarantees low energy consumption, saving sufficient car battery charge up to 60 days in arm mode due to patented progressive technologies and firmware solutions

EXTENDED TEMPERATURE RANGE

Due to high quality components StarLine security-telematic systems stably operate in severe climatic conditions at temperature from −40°C to +85°C

CONVENIENT SERVICE

BLUETOOTH SMART CONTROL

Bluetooth Smart provides reliable control over car security and service functions from your smartphone even out of GSM network (available for iOS and Android smartphones with Bluetooth 4.2 and above and StarLine Mobile App)

2CAN+2LIN INTERFACE

2CAN+2LIN interface provides easy, convenient and safe installation of StarLine security system to modern cars with CAN and LIN bus

REMOTE ENGINE START

Intelligent remote and automatic engine start at a determined temperature, time, weekday or by battery voltage

SMART KEYLESS BYPASS

Save money on purchasing an additional bypass module or duplicate key to implement remote engine start on CAN and LIN equipped cars

PARKING HEATER CONTROL

Remote control over Webasto, Eberspächer parking heaters

TURBO TIMER

StarLine extends turbocharged engine life by proper turbine cooling after a trip

FLEXIBLE CONFIGURATION

Programmable channels with flexible logic settings for extended vehicle security and comfort functions

HANDS FREE FUNCTION

StarLine will disarm security and unlock the doors when owner approaches a car to wireless tag detection area

BEACH MODE (option)

With optional EC-1 touch sensor you may leave all keys, remotes and belongings in car. Security will disarm with PIN-code entered by touching the sensor

STARLINE TELEMATICS

Easy control of your vehicle security with a smartphone, remote control, tablet or a PC

Vehicle location detection

Alarm arming and disarming

Everyday life of your vehicle in detail

Vehicle parking lot search function

Visual indication of statuses, such as SIM card       balance, battery charge, temperature, etc.

Convenient configuration parameters for the                 remote start and stop of the engine

Control of Webasto and Eberspacher heaters

Engine locking, anti-hijack mode

   Toll free unlimited subscription at starline.online and in mobile App
